Clear Teflon (ECTFE) Shields

The Clear ECTFE guard is manufactured from a central section of clear teflon & side sections of teflon coated fibreglass. This material is inherently resistant to Ultra-Violet radiation & enables a visual inspection of the flange joint.

Clear ECTFE is well suited to concentrated acid & caustic duty as well as Fuel / Lube oil. All our designs are tested on our hydrostatic pressure test facility, test certificates are available on request.

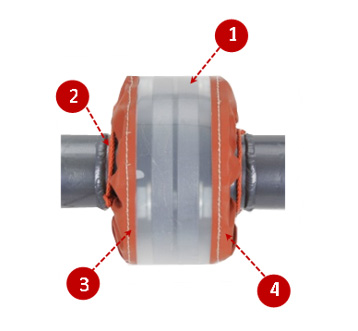

clear teflon pipe safety shields

1. Central Clear ECTFE material
Added safety & continued visual inspection. Other shield designs use FEP as clear section, which can "cloud" over time, becoming opaque, and difficult to see through.

2. 100% Teflon Pull cord
Provides a strong, re-usable tie down.

3 Teflon Thread
Better resistance against corrosive atmospheres. Other shields use cotton threads which disintegrate quickly.

4. Highly visible Orange PTFE Teflon material
Provides a strong, corrosion resistant material to hold the ECTFE in place & wrap tight against the pipe wall.
