Fuel oil, lubrication oil, thermal oil, even diesel when under pressure, can represent an explosion hazard in the case of leakage forming a 'Mist' or 'Vapour cloud' that later ignites. Flange and Valve Guards can reduce this risk by controlling the spray out, condensing the vapour into a liquid and producing a safe drip. Customers often use our Guards to reduce/re-classify ATEX hazardous area as a part of a DSEAR review.
Please contact us for more information on our unique high pressure "Secondary Grade" leak tests on "Fixed Part" Sealing Elements, in accordance with BS EN 60079-10-1:2015

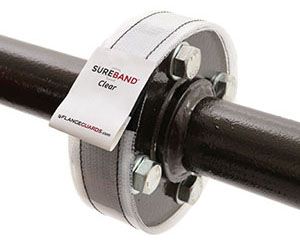

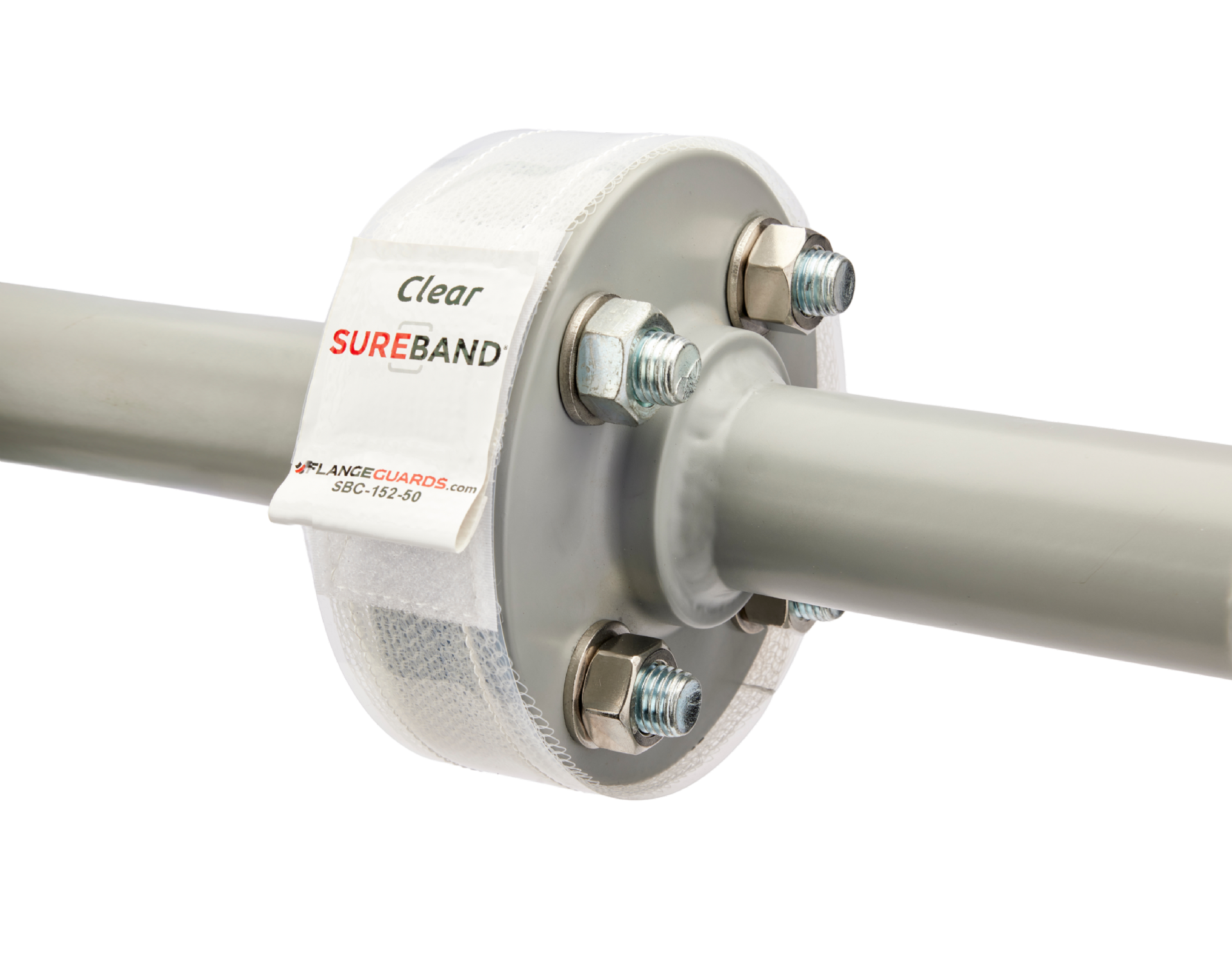

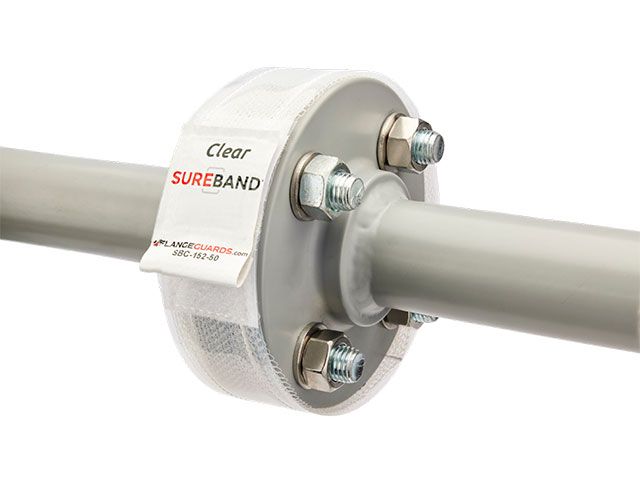

All PTFE shield with Pressure Diffusion Technology (PDT) incorporating multi-layered PTFE mesh.
No pull-cords, quick connection strips. Litmus indicator patch included.
RECOMMENDED

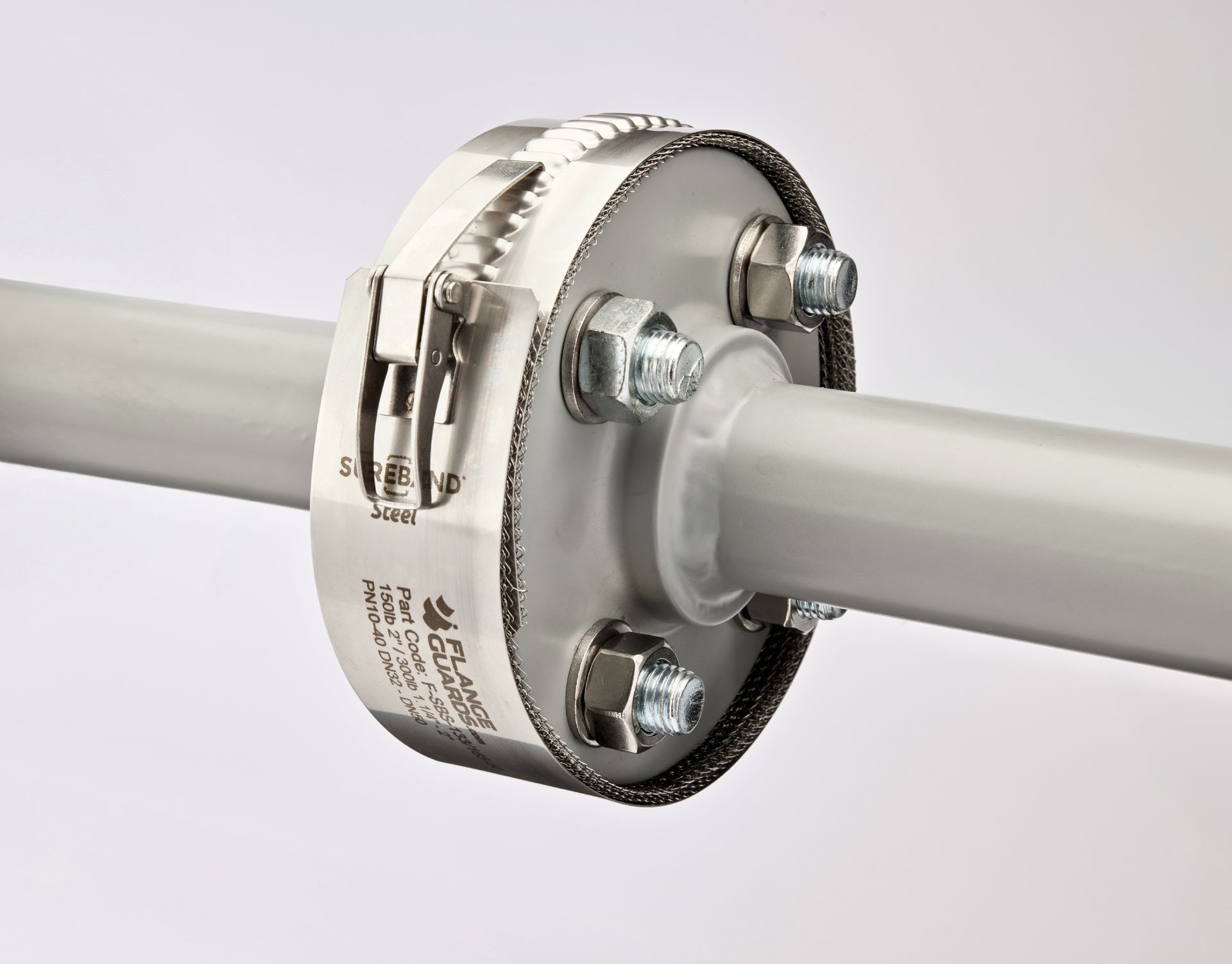

316 STEEL shield with Pressure Diffusion Technology (PDT) incorporating multi-layered steel mesh.
Simple design and quick-connection latch for easy installation.
RECOMMENDED

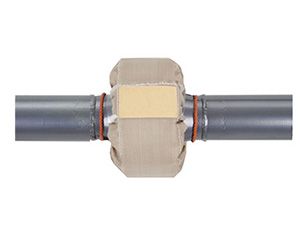

The PTFE guard is manufactured from three layers of woven Teflon coated fibreglass fabric with a central Teflon scrim for strength. This material is inherently resistant to Ultra-Violet radiation. There is a litmus leak indicator patch contained within a clear Teflon window.
